6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

1 / 5

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Send Inquiry

Product Description

Product Description

6v 12v 24v Micro Motor Electric Car Motor Micro DC Motor

✔

Product Details

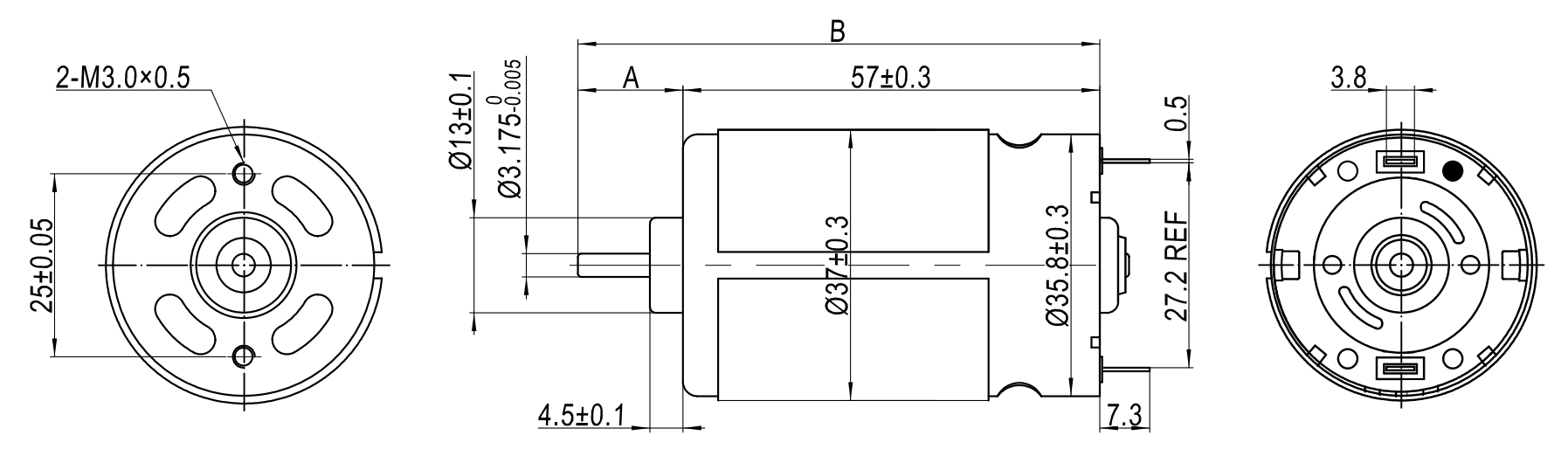

Reference Drawing

Model: RS - 545 A

Model: RS - 555 A

Model: RS - 575 A

Technical Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
Model		Range	Nominal	Speed(RPM)	Current(A)	Speed(RPM)	Current(A)	Torque(mN.m)	Power(W)	Current(A)	Torque(mN.m)
RS-550H	23128R	6.0-24.0	24VDC	4500	0.1	3932	0.39	25.7	10.6	4.8	204
RS-550H	6034	6.0-12.0	12VDC	16000	1.12	13613	4.96	25.6	40.36	48.89	281.4
RS-555H	3540	6.0-12.0	12VDC	7800	0.3	6708	1.84	21.9	15.35	11.31	156
RS-555H	23100	6.0-24.0	24VDC	7000	0.14	6004	0.77	19.2	12.09	4.2	124.5

Recommend Products

Frequently Asked Questions

Q: What is the operating voltage range for these micro motors? A: These motors typically operate within a range of 6.0V to 24.0V DC, depending on the specific model selected.

Q: Can the motor shaft length be customized? A: Yes, the length of the shaft can be customized according to your specific application requirements.

Q: What are the main applications for the RS-550 and RS-555 series? A: They are widely used in electric cars, micro appliances, power tools, and various DIY electronic projects.

Q: Are these motors Permanent Magnet DC (PMDC) types? A: Yes, these are high-quality PMDC motors designed for efficiency and reliable performance.

Q: Do you provide detailed technical drawings for integration? A: Yes, reference drawings for models like RS-545, RS-555, and RS-575 are provided to assist with mechanical design.

Q: What is the stall torque of the RS-550H model? A: Depending on the variant, the stall torque can range from 204 mN.m up to 281.4 mN.m.

Product Detail

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Product Description
